Photo Count: 5-
Price:
$73,900 USD -
Location:
Fargo, North Dakota - (800) 437-2924
Interested in this machine? Send us a message
PriceWatch
Subscribe to be notified of price changes on this item.

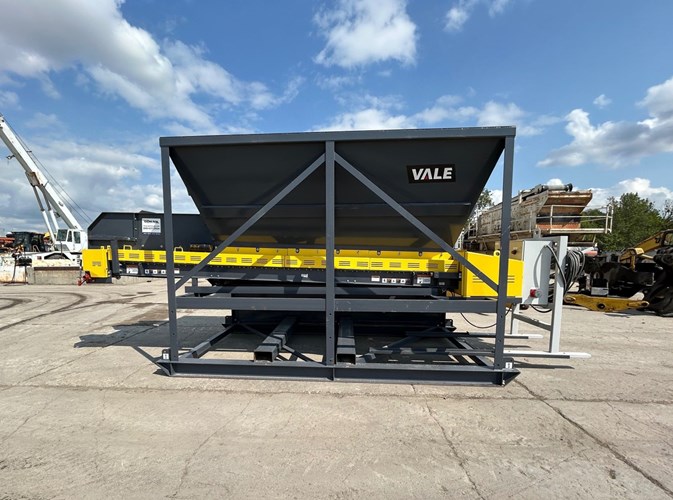

2023 Vale Industries Feeder 3618FD
Fields with asterisks * are required.
Print This Page
Description
VALE SKID MOUNTED FEEDER
Inventory ID
E00073924
Serial
23V0120
Machine Location
Details
- Inventory ID: E00073924
- Status: On Yard
- Make: Vale Industries
- Model: 3618FD
- Year: 2023
- Serial#: 23V0120
Notes
- 3618FD FEEDER EQUIPPED PER THE BELOW:
- PLANT DESIGN AND CAPACITY:
- 150-600 TONS/HR
- BASED ON 100 PCF MATERIAL
- 11YD3 HOPPER
- MATERIAL FLOW SELF-RELIEVING PROFILE AT SKIRT LEVEL
- SCREW ADJUSTABLE DISCHARGE GATE
- CANOE LINERS 1.5" X 7" WITH 45›¼° TOP ANGLE BACK AND FULL LENGTH HOPPER SIDES
- INCLUDING SKIRT EXTENSION PAST HEAD PULLEY
- 3/8" PLATE SIDE WALLS AND ›¼¼" PLATE END WALLS
- 75 DEGREE FRONT AND BACK WALL ANGLES 60›¼° SIDE WALLS - STRUCTURE AND RAMP UP:
- HSS HOPPER STRUCTURES WIDE FLANGE SKID
- BOLT-ON ›¼¼" PLATING RELOCATABLE TO BOTH SIDES
- TOW LUGS ON 4 CORNERS OF SKID - 36" X 18- FEEDER:
- 330/3 PLY 1/4X1/16 D1 BELT VULCANIZED
- 12X38 HEAD DRUM PULLEY 3/8 LAGGED 1045 SHAFTING 215 SCM BEARING UNITS
- 12X38 WING TAIL PULLEY WITH SCREW TAKE-UP 1045 SHAFTING 207 SCM BEARING
UNITS
- TA5215H25 REDUCER WITH 1.8:1 RATIO V-BELT DRIVE
- 15HP 460V ELECTRIC MOTOR
- C5 SUPERIOR CARRY IDLERS 6.5" SPACING UNDER HOPPER 9.5" SPACING OUTSIDE
HOPPER TO HEAD
- RUBBER DISC RETURNS
BELT CLEANER SUPERIOR XTERRA
- REMOVABLE CHANNEL CARTRIDGE STRUCTURE; GUARDS FOR TAIL AND IMPACT AREAS
URETHANE PREMIUM COATING GRAPHITE GREY RAL 7024
- OWNER-S MANUAL - NOTE: IT IS THE END USER-S RESPONSIBILITY TO ENSURE SAFETY AND GUARDING MEET LOCAL REGULATIONS.
